TOTALLY TUBULAR
22 items
**FURROW FORCE DUAL FERTLIZER TUBE
500 TT314F
**FINGER TUBE;7000/7100JD+2000 KINZE
500 TT001
John Deere and Kinze Starter Fertilizer Placement Tube Part #TT-001 This simple yet effective design is totally protected by the disc blades, so rocks should not be an issue. The 1/8" wall 3/8" stainless tube will easily outlast the disc scraper. The optional seed bounce flap closes the opening between the disc openers assuring correct seed placement by eliminating seed bounce and ricochet. Key Benefits Starter Fertilizer application deeper in the soil profile Instant root uptake for early plant health Maintenance free Installation Instructions: 1. Remove depth gauge wheels and disc's, taking note of shim placement 2. Remove factory seed tube guard remove disc guard bolt on the right side of the row unit (standing behind) 3. Lift TT-001 up into position on row unit 4. Align roll pin holes and install new roll pins (supplied) 5. Re-Install seed tube 6. Re-Install disc openers taking care to get the correct shim placement 7. Re-Install depth gauge wheels Recommend replacing disc openers when you put our fertilizer tubes on.
**TT001 TUBE W/ OVER-SIZED ROLL PINS
500 TT001-OS
John Deere and Kinze Starter Fertilizer Placement Tube Part #TT-001 Oversized If your roll pin holes for your seed tube guard on your planter show wear your seed tube guard will not fit snug. We suggest this product. The roll pin holes are enlarged to 13/32 in. This will allow the seed tube guard and attached fertilizer tube to hold fast and snug to your row unit. This simple yet effective design is totally protected by the disc blades, so rocks should not be an issue. The 1/8" wall 3/8" stainless tube will easily outlast the disc scraper. The optional seed bounce flap closes the opening between the disc openers assuring correct seed placement by eliminating seed bounce and ricochet. Key Benefits Starter Fertilizer application deeper in the soil profile Instant root uptake for early plant health Maintenance free Installation Instructions: 1. Remove depth gauge wheels and disc's, taking note of shim placement 2. Remove factory seed tube guard remove disc guard bolt on the right side of the row unit (standing behind) 3. Lift TT-001 up into position on row unit 4. Align roll pin holes and install new roll pins (supplied) 5. Re-Install seed tube 6. Re-Install disc openers taking care to get the correct shim placement 7. Re-Install depth gauge wheels Recommend replacing disc openers when you put our fertilizer tubes on.
**ROW UNIT; 1700/7200/7300 NON-XP
500 TT002
**TT002 TUBE W/ OVERSIZED ROLL PINS
500 TT002-OS
John Deere and Kinze Starter Fertilizer Placement Tube Part #TT-001 Oversized If your roll pin holes for your seed tube guard on your planter show wear your seed tube guard will not fit snug. We suggest this product. The roll pin holes are enlarged to 13/32 in. This will allow the seed tube guard and attached fertilizer tube to hold fast and snug to your row unit. This simple yet effective design is totally protected by the disc blades, so rocks should not be an issue. The 1/8" wall 3/8" stainless tube will easily outlast the disc scraper. The optional seed bounce flap closes the opening between the disc openers assuring correct seed placement by eliminating seed bounce and ricochet. Key Benefits Starter Fertilizer application deeper in the soil profile Instant root uptake for early plant health Maintenance free Installation Instructions: 1. Remove depth gauge wheels and disc's, taking note of shim placement 2. Remove factory seed tube guard remove disc guard bolt on the right side of the row unit (standing behind) 3. Lift TT-001 up into position on row unit 4. Align roll pin holes and install new roll pins (supplied) 5. Re-Install seed tube 6. Re-Install disc openers taking care to get the correct shim placement 7. Re-Install depth gauge wheels Recommend replacing disc openers when you put our fertilizer tubes on.
**FINGER TUBE; JD MAX EMERGE 5 SERIES
500 TT007
John Deere Starter Fertilizer Placement Tube Part #TT-007 This simple yet effective design is totally protected by the disc blades, so rocks should not be an issue. The 1/8" wall 3/8" stainless tube will easily outlast the disc scraper. The optional seed bounce flap closes the opening between the disc openers assuring correct seed placement by eliminating seed bounce and ricochet. Key Benefits • Starter Fertilizer application deeper in the soil profile • Instant root uptake for early plant health • Maintenance free Installation Instructions: 1. Remove depth Guage wheels and disc openers, making sure to note correct shim placement. 2. Remove stock seed tube guard. 3. Install new Totally Tubular part TT007. 4. Bend centering tab against row shank. The picture above shows the tab before it is bent against the shank. Tap centering tab with mallet to firmly hold tube centered. 5. Reinstall disc openers, making sure you have correct shim placement. Recommend replacing disc openers when you put our fertilizer tubes on. Â
**SEED BOUNCE FLAP; FINGER TUBE
500 TT008
Part #TT-008 This rubber flap installs into the seed tube for simple control of seed bounce. The optional seed bounce flap closes the opening between the disc openers assuring correct seed placement by eliminating seed bounce and ricochet. This ensures the seed is getting into the seed trench and not on top of the ground. It also helps in the plantability of light seeds such as sugar beets and protects them from the "floating effect" when traveling down wind. This product works with the Precision Seed Tube, however the roll pin will need to be cut down, and the flap itself has to be cut down lengthwise to fit into the smaller opening of this seed tube. This product will not work with the Bullseye Seed Tube. Installation Instructions: Drill a 1/8" hole through seed tube using supplied template. It is very important that this hole is drilled straight, so removing the seed tube and using a drill press is recommended Insert the seed bounce flap pin into one of the above holes and twist seed bounce flap up into position, snapping the other side of the roll pin into the adjacent hole Re-Install seed tube
**JD EXACT EMERGE FERT TUBE
500 TT009
John Deere ExactEmerge Planter Totally Tubular field tested 3 ExactEmerge planters with our fertilizer tubes running different rates of fertilizer, at different rates of speed. Each test was successful in the following ways: 1. Fertilizer was successfully placed in the trench, below the seed. 2. Fertilizer was not building up on the brush system, nor brought back into the seed delivery system. 3. Fertilizer was successfully placed at various rates of speed, with various rates of fertilizer. Recommendations: 1. Check valves should be run with these fertilizer tubes; close to the tube, in the fertilizer line. 2. Try not to let the planter sit in the ground too long where a pool of fertilizer can form and possibly get onto the brush seed delivery system. 3. Inspect row units for build-up in the brush system when you fill your planter. Installation Instructions: These Instructions need to be followed very closely. Please read thoroughly!!! 1. Remove gauge wheels and disc blades. Remove all shims on right side. 2. Remove nut holding on the disc guard. 3. Slide ExactEmerge Fertilizer tube over disc bolt as shown. This bracket takes the place of two (2) shims. It is the exact width of two (2) shims. 4. Slide bracket on the top of the tube over the disc guard bolt as shown. 5. Tighten the disc guard nut back into place. 6. Align the tube so it is in the center of the seed tube guard and pinch the tab tightly around the guard with a channel lock. (We find a channel lock works the best.) 7. Replace all but two (2) of the shims next to the bracket. 8. The 6mm plastic line is optional. It is provided for additional pressure out of the bottom of the tube. This tube can be inserted up the bottom of the tube, leaving 1/4" sticking out of the bottom. Please inspect daily. Please note : This line may or may not need to be used. In some very dry conditions, this line may melt due to friction; if this happens, remove the plastic 6mm line.
**S.S. FERT TUBE;CASE 1200 (2011 & OLDER
500 TT100
Case Starter Fertilizer Placement Tube Part #TT-100 This tube is mounted washer down in the above pictured down tube on the planter. Simply remove the pin at the bottom of the down tube and install the fertilizer tube, making sure the 80 degree bend on the top of the tube is facing the front of the planter. Reinstall the pin through the washer on the fertilizer tube. This product does not apply below the seed. This tube does not fit on 2012 model Case planters or newer. For tubes that fit the 2012 & newer Case planters see part # TT-10012.
**S.S. FERT. TUBE;1200 CASE (2012 +)
500 TT10012
Case Starter Fertilizer Tube Part # TT-10012 This stainless steel tube applies fertilizer in-furrow for Case planters. This tube fits 2012 Case planters and newer only. This fertilizer tube does not place fertilizer below the seed. Here it is shown with the insecticide tube taken off of the planter. The stainless steel tube fits inside this part. Instructions for TT-10012 Case planter fertilizer tube: Tube must be installed from the bottom. Push tube up until its tight, the tab welded on the bottom of the tube fits inside the insecticide tube. Slide the lock collar over the top of the tube, fitting the round tab welded to the lock collar into the insecticide tube. Tighten with an allen wrench.
**ROW UNIT; WHITE 8000 SERIES
500 TT200
White Starter Fertilizer Placement Tube for 8000 Series This simple yet effective design is totally protected by the disc blades, so rocks should not be an issue. The 1/8" wall 3/8" stainless tube will easily outlast the disc scraper. The optional seed bounce flap closes the opening between the disc openers assuring correct seed placement by eliminating seed bounce and ricochet. Key Benefits Starter Fertilizer application deeper in the soil profile Instant root uptake for early plant health Maintenance free Installation Instructions: Install plastic tubing (provided) into bottom side (where the guard is welded) of stainless steel tube. Leave approximately 1/4" to 3/16" of the plastic tubing sticking out of the stainless steel tube. You may need to cut off the plastic tubing at this point, as more than enough plastic tubing is provided. Remove depth gauge wheels and disc's, taking note of shim placement Remove factory seed tube guard Lift TT-200 up into position on row unit Align roll pin holes and install roll pins Re-Install seed tube Re-Install disc openers taking care to get the correct shim placement Re-Install depth gauge wheels Recommend replacing disc openers when you put our fertilizer tubes on.
**ROW UNIT; WHITE 6000 SERIES
500 TT260
White Starter Fertilizer Placement Tube for 6000 Series This simple yet effective design fits the 6000 Series White planter. It is totally protected by the disc blades, so rocks should not be an issue. The 1/8" wall 3/8" stainless tube will easily outlast the disc scraper. The optional seed bounce flap closes the opening between the disc openers assuring correct seed placement by eliminating seed bounce and ricochet. Key Benefits Starter Fertilizer application deeper in the soil profile Instant root uptake for early plant health Maintenance free  Pictures of this tube are not available at this time. These tubes are mounted the same way as the TT-200 for the 8000 Series. You may view the pictures of that tube for reference if you like. Installation Instructions: Install plastic tubing (provided) into bottom side (where guard is welded) of stainless steel tube. Leave approximately 1/4" to 3/16" of the plastic tubing sticking out of the stainless steel tube. You may need to cut off the plastic tubing at this point, as more than enough plastic tubing is provided. Remove depth gauge wheels and discs, taking note of shim placement. Remove factory seed tube guard. Lift TT-260 up into position on row unit. Align roll pin holes and install roll pins. Re-install disc openers, taking care to get the correct shim placement. Re-install depth gauge wheels.  Recommend replacing disc openers when you put our fertilizer tubes on.
**ROW UNIT; WHITE 9000 SERIES PLANTER
500 TT290
White Starter Fertilizer Placement Tube for 9000 Series This simple yet effective design is for the 9000 Series White planter. It is totally protected by the disc blades, so rocks should not be an issue. The 1/8" wall 3/8" stainless steel tube will easily outlast the disc scraper. The optional seed bounce flap closes the opening between the disc openers assuring correct seed placement by eliminating seed bounce and ricochet. Key Benefits: Starter Fertilizer appliation deeper in the soil profile Instant root uptake for early plant health Maintenance free Installation Instructions: Install plastic tubing (provided) into bottom side (where the guard is welded) of stainless steel tube. Leave approximately 1/4" to 3/16" of the plastic tubing sticking out of the stainless steel tube. You may need to cut off the plastic tubing at this point, as more than enough plastic tubing is provided. Remove depth gauge wheels and discs, taking note of shim placement. Remove factory seed tube guard. Lift TT-290 up into position on row unit. Align roll pin holes and install roll pins, making sure the tab welded to the side of the fertilizer tube fits snug up against the side of the row unit. (You may need to bend this tab to make sure it fits snug, in case it gets bent in shipping.) Re-install disc openers taking care to get the correct shim placement. Re-install depth gauge wheels. Recommend replacing disc openers when you put our fertilizer tubes on.
**SPLIT FERT ASSY
500 TT300
TT300 Nitrogen and/or Liquid Fertilizer Tube Part #TT-300 This tube applies any liquid fertilizer solution beside the seed trench behind the closing wheels. It is shown here on a John Deere planter with a spiked wheel closing disc. It is fully adjustable by the end user as far as the distance from the seed trench. Fertilizer hose may be added to end of the tube to get closer to the soil if the producer so wishes. The tubes and all of the hardware are stainless steel. A 3/8" Y fitting is included. To attach to your row unit you will need to drill a ¼" hole in the back of your row unit. Attach to the row unit as shown above. Make sure to leave slack in your hose around the Y splitter; do not fasten hose down tight to the row unit as this area of the row unit will move alot down the field. A loop is suggested in the hose around the Y splitter to prevent hosing from pulling apart in that area. TO ATTACH THE BRACKET TO A WHITE 6000 OR 8000 SERIES PLANTER IT MUST BE TURNED UPSIDE DOWN. THIS TUBE WILL NOT FIT ON A 9000 SERIES WHITE PLANTER, OR ANY CASE PLANTER. DO NOT USE AN IMPACT WRENCH TO TIGHTEN THIS TO YOUR PLANTER. USE THREAD LUBRICANT TO ASSIST IN TIGHTENING SCREWS.
**FERT TUBE/BRKT CASE 1200 PACKING WHEEL
500 TT300/CASE
Case Planter Nitrogen and/or Liquid Fertilizer Tube Part # TT-300/Case IH This product does not fit on the 2150 Case Planter. For an option for that planter, see part number TT-321. This tube applies any liquid fertilizer solution beside the seed trench, behind the packing wheel. The tubes are sold as one unit, not in pairs. However if you do opt for two tubes behind each closing wheel, Totally Tubular does sell a 3/8" poly Y-splitter to assist in getting fertilizer to each side. TT-300/Case Mounting Instructions: Bracket can be mounted on left or right side of packing wheels, however tube must be on inside of bracket, not the outside, due to possible damage from cornstalks. The large hole in the bracket goes around the bolt on packing wheel arm. The small hole is for the nut and 5/8" bolt provided which is bolted to the existing hole in the packing wheel arm. Mount tube with ¼ inch stainless steel bolts. Adjust the tube according to the angle preferred, tighten bolts. The zip ties provided are for the small three holes on the top of the bracket to assist in holding the hose going to the tube.
**FINGER TUBE; 3000 KINZE
500 TT301
Kinze Starter Fertilizer Placement Tube Part #TT-301 (Patented) This simple yet effective design is totally protected by the disc blades, so rocks should not be an issue. The 1/8" wall 3/8" stainless tube will easily outlast the disc scraper. The optional seed bounce flap closes the opening between the disc openers assuring correct seed placement by eliminating seed bounce and ricochet. Key Benefits Starter Fertilizer application deeper in the soil profile Instant root uptake for early plant health Maintenance free Install hose clamp around the shank and placement tube, just above the inside disc scraper. This will hold the tube against the bottom of the shank. Installation Instructions: Remove depth gauge wheels and disc openers, making sure to note correct shim placement. Find the 1/4" casting hole in the shank. This is approximately 1" above and 2" forward of the threaded disc opener attachment hole. Drill this hole out to 9/32 Lift the placement tube up into place and insert the enclosed 1/4" cap screw thread it into the weld nut on placement tube mounting tab. Use the enclosed hose clamp to secure tube firmly to scraper as shown in picture above. Tighten cap screw Attach zip tie in existing hole in planter to tube as shown in picture. Reinstall disc openers. The 6mm tubing is provided for producers who may experience plugging issues due to applying a lower rate of fertilizer. Push this tubing up the bottom side of the fertilizer tube, leaving approximately 1/4" sticking out the bottom. (You may need to cut the plastic tubing off after pushing it up as far as you can.) This will create back-pressue at the bottom of the tube. Due to the variances in Kinze planters, two sizes of bolts have been provided. 1" and 7/8"; use the bolt that best fits your planter. Kinze fertilizer tubes were not meant to be used on planters that are planting deeper than 2 inches. Producers planting deeper than 2 inches may experience rubbing issues on areas of the tube. Recommend replacing disc openers when you put our fertilizer tubes on.
**ROW UNIT, GREAT PLAINS
500 TT400
Great Plains planter Starter Fertilizer Placement Tube Part #TT-400 This simple yet effective design is totally protected by the disc blades, so rocks should not be an issue. The 1/8" wall 3/8" stainless tube will easily outlast the disc scraper. The optional seed bounce flap closes the opening between the disc openers assuring correct seed placement by eliminating seed bounce and ricochet. Key Benefits Starter Fertilizer application deeper in the soil profile Instant root uptake for early plant health Maintenance free Installation Instructions: 1. Remove depth gauge wheels and disc's, taking note of shim placement 2. Remove factory seed tube guard remove disc guard bolt on the right side of the row unit (standing behind) 3. Lift TT-400 up into position on row unit 4. Align roll pin holes and install roll pins 5. Re-Install seed tube 6. Re-Install disc openers taking care to get the correct shim placement 7. Re-Install depth gauge wheels Recommend replacing disc openers when you put our fertilizer tubes on.
**FERTILIZER TUBE KINZE 4000 SERIES
500 TT401
This simple yet effective design is totally protected by the disc blades, so rocks should not be an issue. The 1/8" wall 3/8" stainless tube will easily outlast the disc scraper. The optional seed bounce flap closes the opening between the disc openers assuring correct seed placement by eliminating seed bounce and ricochet. Key Benefits Starter Fertilizer application deeper in the soil profile Instant root uptake for early plant health Maintenance free The Elbow Coupler shown here is available for 3/8, 1/4, & 5/16 size hose. This is an added option available with this tube. Due to the bracket right above the top of the fertilizer tube, this Elbow Coupler works very well for plumbing your Kinze planter. Remember to order Elbow couplers with this tube. See 'Flaps and Fittings' on the Products page. Remove depth gauge wheels & disc openers, making sure to note correct shim placement. Remove seed tube guard. Install new TT-401 fertilizer tube. Bend centering tab against row shank, using a rubber mallet as necessary. The 6mm tubing is provided for producers who may experience plugging issues due to applying a lower rate of fertilizer. Push this tubing up the bottom side of the fertilizer tube, leaving approximately 1/4" sticking out the bottom. (You may need to cut the plastic tubing off after pushing it up as far as you can.) This will create back-pressure at the bottom of the tube. Recommend replacing disc openers when you put our fertilizer tubes on.
**CIH 1200 BELOW SEED FERT TUBE
500 TT125

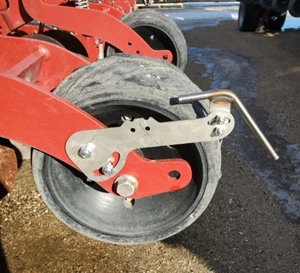

**FERT TUBE/BRKT 2150 CASE PACKING WHEEL
500 TT321

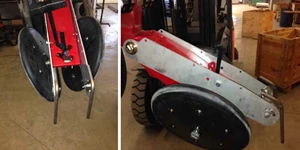

**WHITE 9000 SERIES CLOSING WHEEL TUBE
500 TT390
**FINGER TUBE; XP JOHN DEERE
500 TT006
John Deere Starter Fertilizer Placement Tube Part #TT-006 (Patented) This simple yet effective design is totally protected by the disc blades, so rocks should not be an issue. The 1/8" wall 3/8" stainless tube will easily outlast the disc scraper. The optional seed bounce flap closes the opening between the disc openers assuring correct seed placement by eliminating seed bounce and ricochet. Key Benefits Starter Fertilizer application deeper in the soil profile Instant root uptake for early plant health Maintenance free Installation Instructions: Remove depth guage wheels and disc openers, making sure to note correct shim placement Remove stock seed tube guard Install new Totally Tubular part #006 Bend centering tab against row shank Tap centering tab with mallet to firmly hold tube centered Re-install disc openers, making sure you have correct shim placement Return "new only" factory scraper to dealer for a $8.00/row manufacturer refund Recommend replacing disc openers when you put our fertilizer tubes on.
1 - 22 of 22
